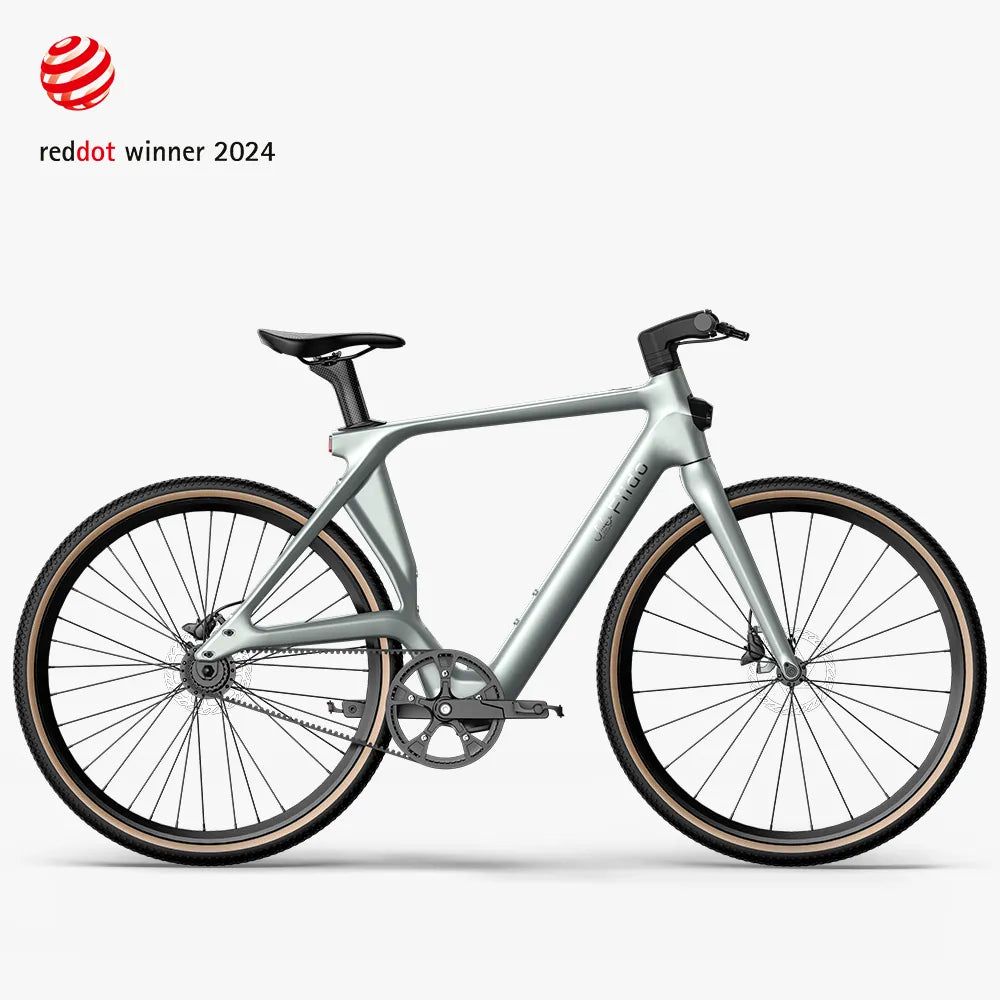

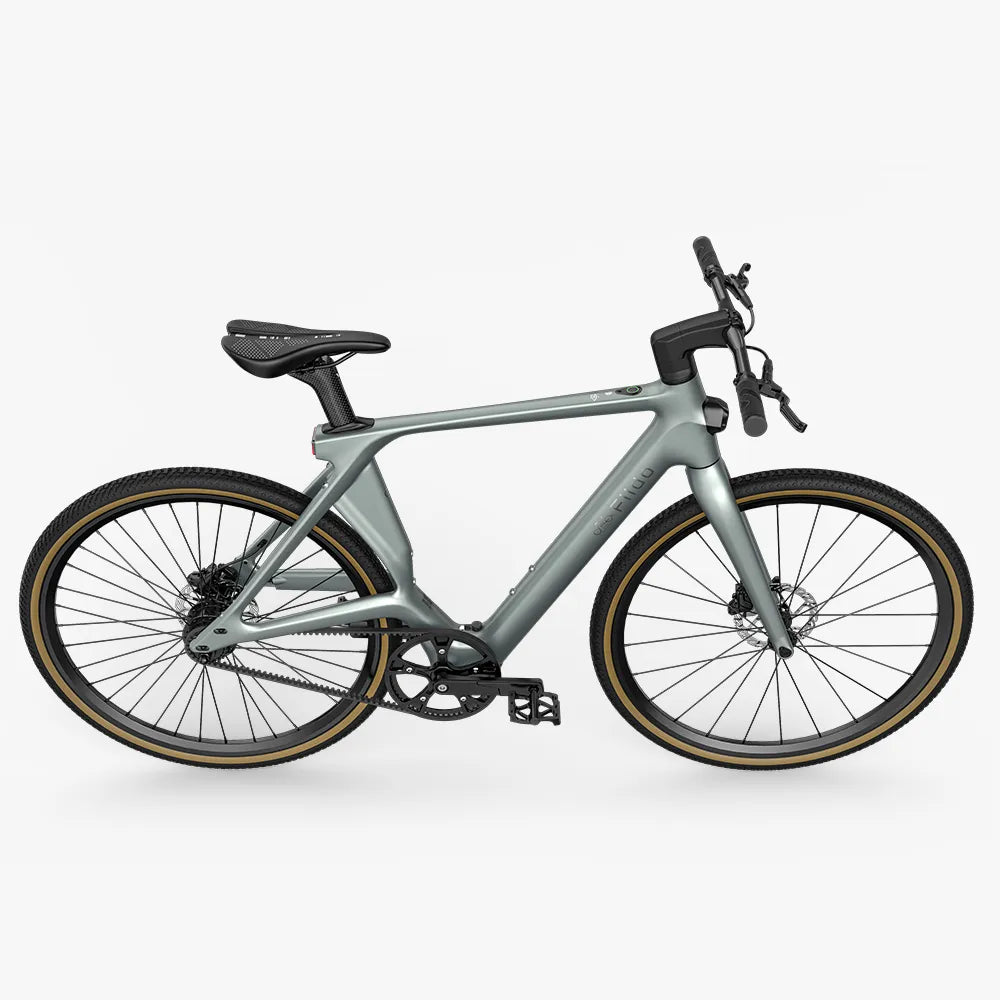

Fiido Air - Carbon Fiber EBike
- Air Ebike: Dispatches from the US local warehouse.
Light as Air.
|
Only 30.3 lbs , one of the world's lightest ebikes |
 |

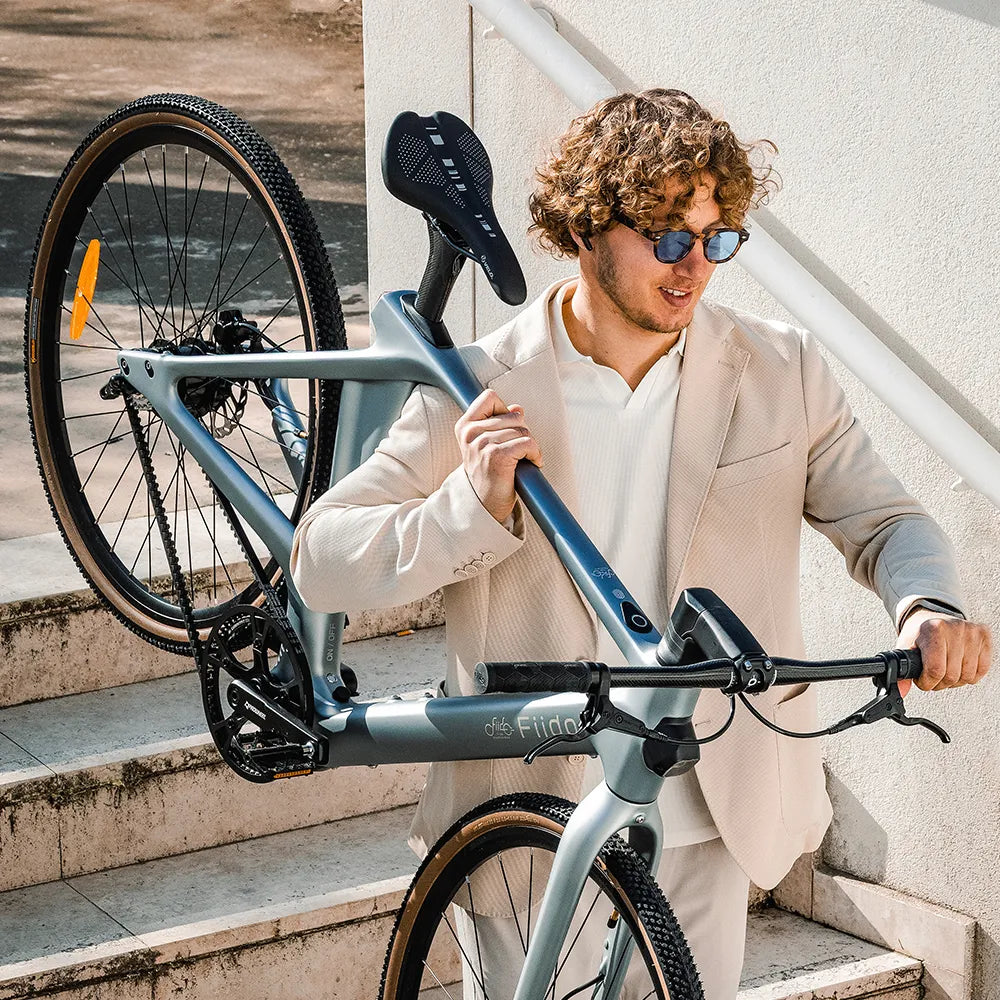

Effortless to lift and carry, perfect for city life |
 |
No exposed cables, ultra-clean minimal design |
No Grease. No Worries.
 |
Silent low-resistance motor, no noise, even when accelerating |
 |
Torque sensor delivers intuitive, natural pedal assist |
*Riding range is based on rider weight, cargo weight, wind, hills, tire pressure, speed, gear, road surface and pedal-assist level.
FIIDO AIR CARBON E-Bike with belt drive [ Unboxing & Review ] TuTo |
|
|
|
A 31-Pound Fully Carbon Fiber E-Bike? Fiido Air Review |
|
ULTRALIGHT CARBON ELECTRIC BIKE! FIIDO AIR CARBON |
| Name | Description |
|---|---|
|
Model Name
|
Air
|
|
Net Weight
|
30.3 lbs
|
| Payload | 264lb / 128 kg |
| Frame |
700C carbon fiber frame
|

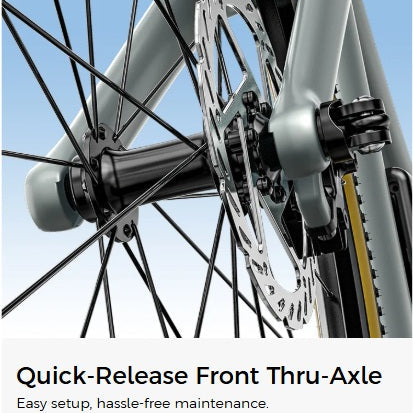

| Fork | Carbon fiber through axle fork (axle diameter 15mm) with 100mm opening width |
| Headset | Aluminum alloy bearing headset |
|
Drive Unit
|
Mivice M070 250W
|
|

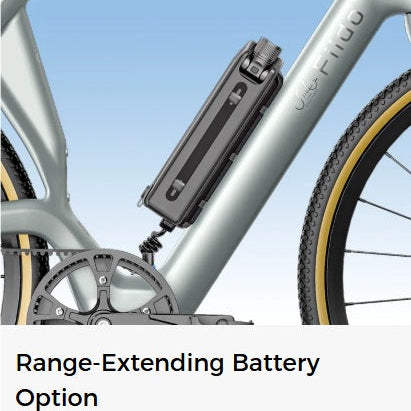

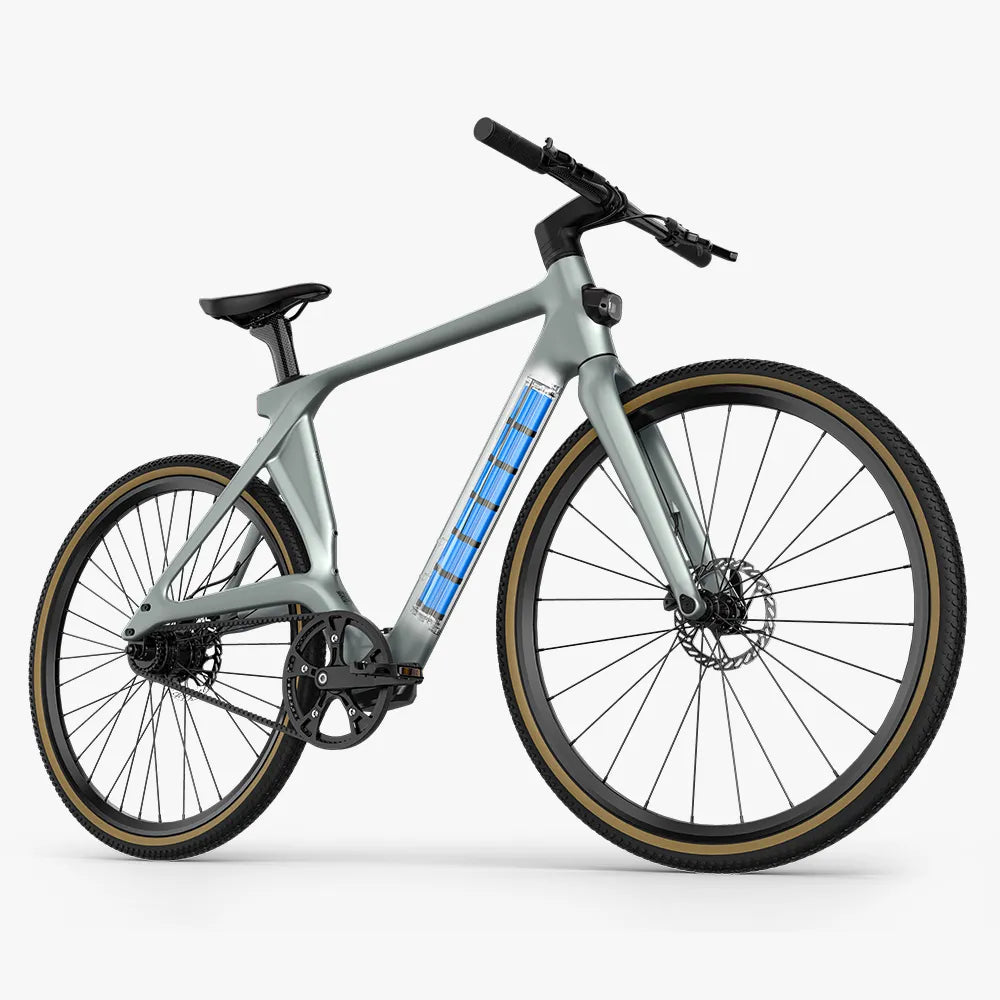

Battery
|
DMEGC 208.8Wh
|
| Charger | 36V2A |
|
Charging Time
|
|
|
Display
|
|
| Throttle | |
|
Rear Derailleur
|
|
| Shifters |
|
| Chain |
GATES CDN Belt
|
| Crank |
GATES CDX 60T
|
|
Rear Cogs
|
GATES CDC 22T
|
| Sensor | Torque Sensor Mivice S200 |

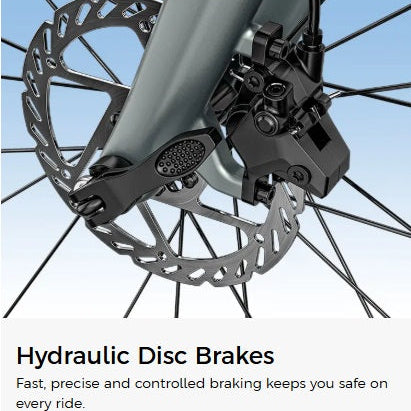

| Brakes | Hydraulic Disc Brake |
|
Brake Levers
|
|
|
Front Hub
|
Aluminum alloy double-bearing barrel axle hub (barrel axle diameter 15mm) |
| Rims |
Aluminum alloy double-layer rim
|
|
Spokes
|
Stainless steel spokes with brass nipples
|

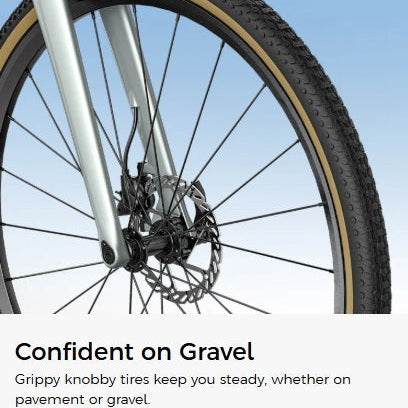

| Tires | 700*40C |
| Handlebar | Carbon fiber (Length: 640mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm) |
| Stem |
Carbon fiber stem
|
| Grips | TPR non-slip handle grip (Length: about 130mm) |

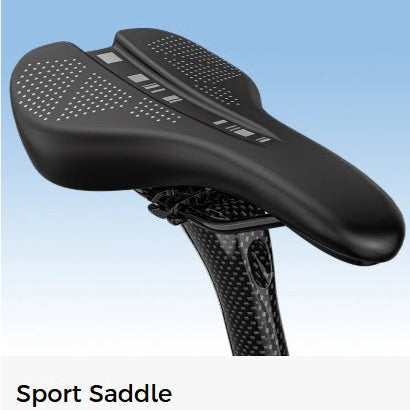

| Saddle |
vacuum full-fit saddle
|
|

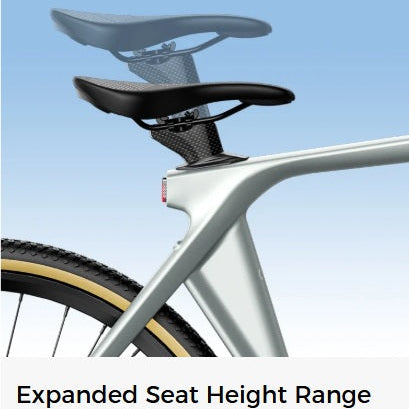

Seatpost
|
Carbon fiber aero seatpost (Length: M-355mm; L-385mm; XL-415mm) |
All measurements provided in mm unless otherwise noted.
| M | L | XL | |
| Rider heights | 5'4" (165cm) - 5'9" (175cm) | 5'7" (170cm) - 6'3" (190cm) | 6'1" (185cm) - 6'9" (205cm) |
| Wheel size | KENDA 700*40C | KENDA 700*40C | KENDA 700*40C |
| A-Seat tube | 510 | 540 | 580 |
| B-Seat tube angle | 73° | 73° | 73° |
| C-Head tube | 150 | 170 | 190 |
| D-Head angle | 71° | 72° | 72.5° |
| E-Top tubelength | 576 | 592 | 600 |
| F-Standover height | 818 | 845 | 876 |
| G-BB drop | 70 | 70 | 70 |
| H-Rear Center | 435 | 435 | 435 |
| I-Wheelbase | 1057 | 1063 | 1063 |
| J-Reach | 394 | 404 | 405 |
| K-Stack | 593 | 616 | 638 |
| L-Maximum seat height | 950 | 1010 | 1080 |
| M-Minimum seat height | 890 | 920 | 950 |
| N-Totallength | 1755 | 1780 | 1780 |
| O-Handlebar height | 987 | 1010 | 1032 |
| P-Handlebar length | 655 | 655 | 655 |
